Cash Register Help
SAM4s Cash Registers, Sharp Cash Registers, Casio Cash Registers
The Site that offers FREE cash register Support and Programming
FREE support for SAM4s Cash Registers including free programming tips when we can. Many people program their
SAM4s Cash Register by themselves as they are a pretty easy cash register to program. If you are not comfortable
programming a cash register then you should hire a pro from a cash register dealership we have links to
SAM4s ER-5215M Cash Register Programming
     SAM4s ER-5215M Cash Register Date and Time Programming

  • Program 1300 - Date and Time Programming Use this program to set the clock and calendar on your ER-
    5215M. The date changes automatically. After initial setting, time changing will probably be required only for
    beginning and ending daylight savings time.
  • 1. Turn the control lock to the P position.
  • 2. To begin the program, enter 1 3 0 0, press the SBTL key.
  • 3. Enter time in military standard time (based on 24 hours), must be four digits (i.e. 1300 hours = 1:00 PM);
    press the X/TIME key.
  • 4. Enter the date in MM(month) DD(day) and YY(year) format. Press the X/TIME key:
  • 5. Press the CASH key to finalize the program.

Example 1 3 0 0 SBTL H H M M X/TIME M M D D Y Y X/TIME CASH
As of June 2010 The SAM4s ER-5215M is a current model. Here are
several dealers that sell the ER-5215M Cash Register Nationwide

Source #1 SAM4s ER-5215M Cash Register

Source #2 SAM4s ER-5215M Cash Register
              SAM4s ER-5215M Cash Register Tax Programming

The ER-5215M has the capability to support four separate taxes. Taxes can be calculated as either a straight
percentage rate of between .001% and 99.999%, or a 60 break point tax table. Each tax may be either an add-on
tax (added to the cost of a taxable item), or a value added tax (VAT) that is included in the price of the item.

Our example will be for "Straight Percentage Tax Rate Programming"

Straight Percentage Tax Rate Programming When tax requirements may be met using a straight percentage rate,
use the following method to program a tax as a straight percentage. Programming Straight Percentage Tax Rates
and Status
  • 1. Turn the control lock to the P position.
  • 2. If the tax is a percentage rate, with a decimal. (0.000-99.999). It is not necessary to enter preceding zeros.
    For example, for 6%, enter 06.000 or 6.000.
  • 3. For the type of tax: If the tax is a percentage added to the sale (normal add on tax), enter: 0 If the tax is a
    percentage value added tax (VAT; calculated as part of the sale), enter: 2
  • 4. Enter 0 here for all taxes, unless if you are programming tax 4 as a Canadian GST. If tax 4 is a Canadian
    GST, enter the sum of the options following: OPTION VALUE = SUM GST (tax 4) is taxable by rate 1? Yes = 1
    No = 0 GST (tax 4) is taxable by rate 2? Yes = 2 No = 0 GST (tax 4) is taxable by rate 3? Yes = 4 No = 0
  • 5. Press the Tax Shift key for the tax you are programming.
  • 6. Press the CASH key to end programming.

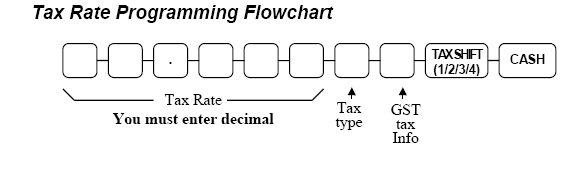

SAM4s ER-5215M Tax Programming Flow Chart
             SAM4s ER-5215M Cash Register PLU Status Programming

All PLUs, whether they are registered by pressing a PLU key on the keyboard, or by entering the PLU number and
pressing the PLU key, have the same programming options. These options are set through separate programs:
The values for N1 through N9 are determined from
the following ER-5215M PLU Programming flow chart

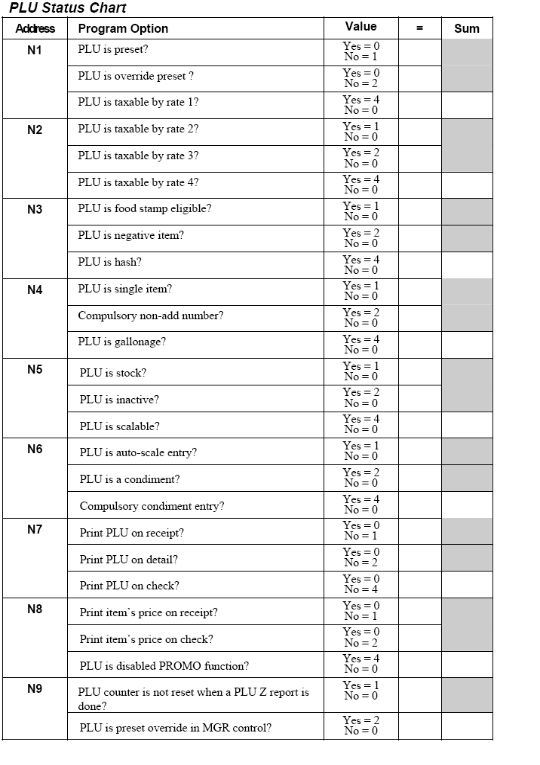

SAM4s ER-5215M PLU programming Status Value Flowchart
                  SAM4s ER-5215M PLU Group Link Programming

Each PLU should be linked to a major Group aka "Sales Department) PLU's may be linked to more then one group
however it is not done often. Following is the programming flow chart to for the SAM4s ER-5215M Cash Register

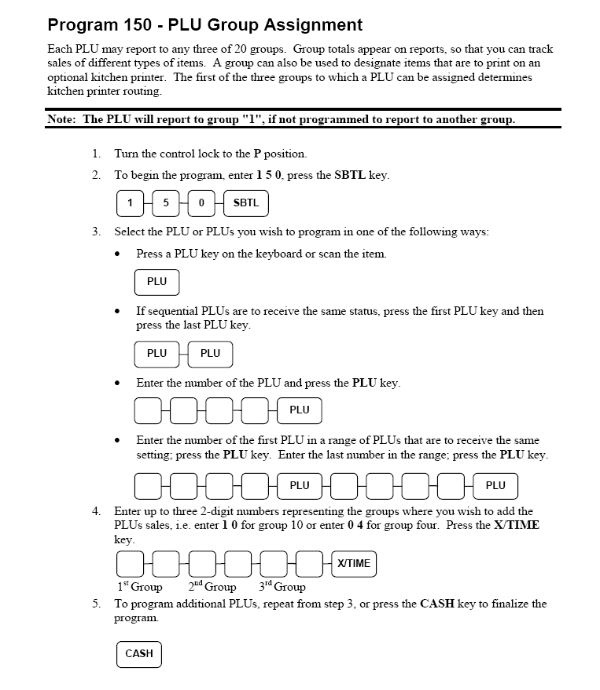

SAM4s ER-5215M PLU Group Linking Program
There is of course more programming to be done on the SAM4s ER-5215M however we listed the basics. The entire
manual can be found here
SAM4s ER-5215M Manual    or The Cash Register Guys have it posted here Free
SAM4s Cash Register Manual Downloads
